Catch Can Kit for NA & NB Mazda MX5 Miata by Radium

*All orders are made-to-order and ship straight from Radium. Expect to receive 5-10 business days from purchase*

Features:
• Large 10AN ORB inlet and outlet ports
• 4AN ORB drain port
• 2-step oil separation baffling
• O-ring sealed dipstick
• 7 fluid ounce capacity
• Patented Fluid Lock® system

Overview:
The catch can draws out oil and water condensation from the crankcase gasses that would otherwise be drawn into the intake manifold. This prevents oil buildup in the intake, intercooler system walls, throttle body, and intake manifold. This effectively raises the octane, can increase engine performance from cleaner inlet air, and can lower hydrocarbon emissions. The closed system prevents unwanted oil vapors from entering into the cabin. Catch can kits include everything needed for a complete installation.

The rate that your catch cans will collect oil and moisture contaminants will vary from one individual vehicle to the next, so there is no set emptying interval. PCV catch cans tend to collect more than CCV catch cans. You should check the level of your catch can using the integrated dipstick starting at 3-4 weeks of driving and repeat as needed to determine how often they should be emptied based on what you see.

Catch cans can be emptied by unscrewing the lower reservoir and removing it from the vehicle to dump out.

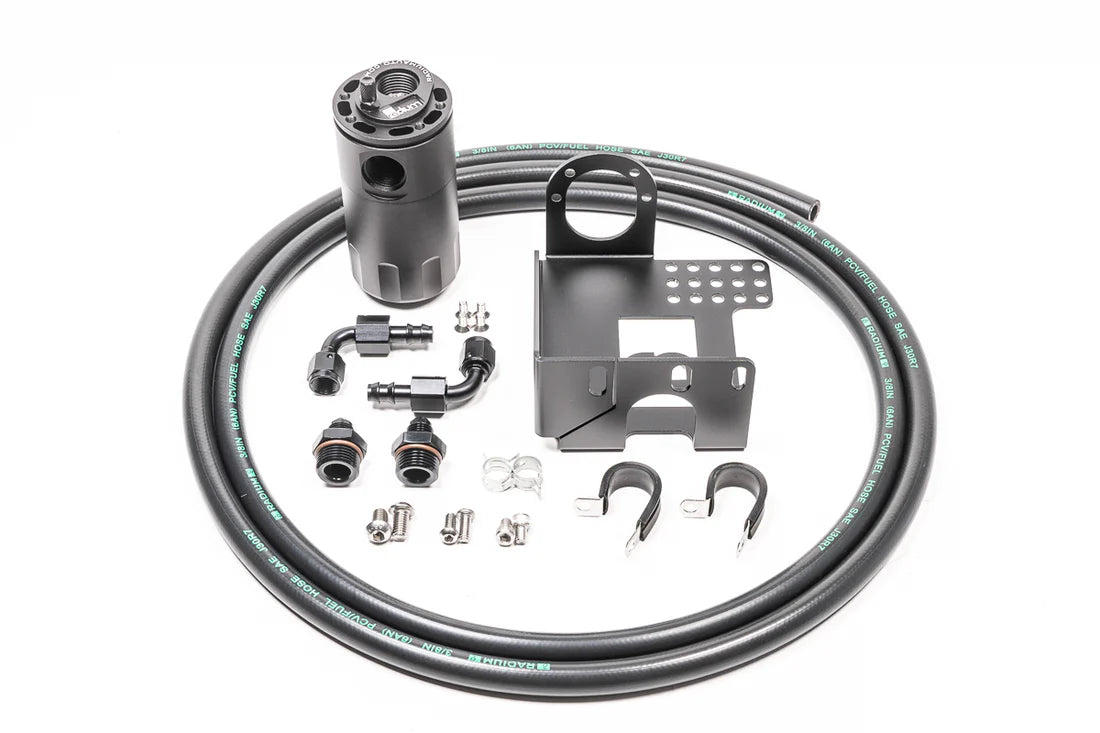

Included:
• Baffled Fluid-Lock® oil catch can
• Anodized aluminum mount bracket
• 3/8" PCV hose
• 10AN ORB to 6AN male fitting (x2)
• Pushlock hose end (x2)
• Installation hardware

Instillation Guide: Download

Part Number: 20-0336-FL

This Part Fits: 1989-2005 NA NB Mazda Miata's
