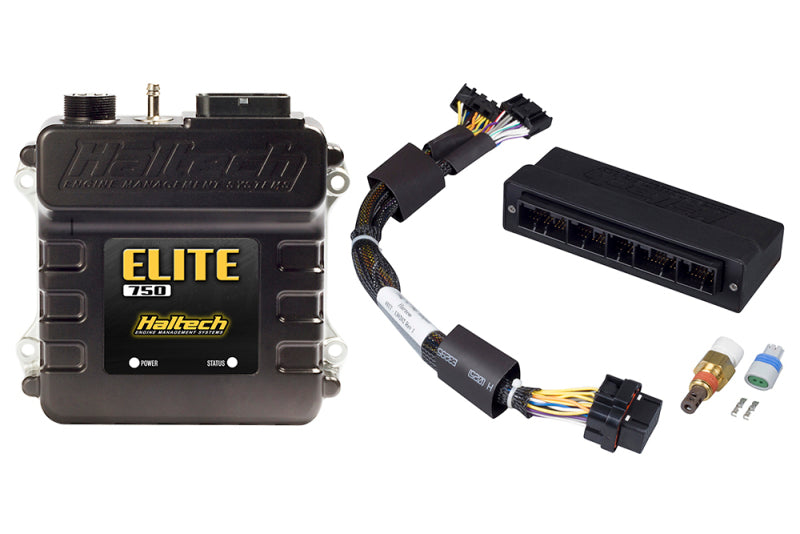

Elite 750+ Plug'n'Play Adaptor Harness ECU Kit for NB2 Mazda Miata by Haltech

Featuring a robust, environmentally sealed, waterproof case, 6 fuel and 6 ignition channels, on-board data logging and flex fuel tuning the Elite 750 is a powerful, compact ECU.

Like all Elite Series ECUs, the Elite 750 ECU now uses the Nexus Software Programmer (NSP) that brings levels of functionality and user friendliness never seen before in an engine control package. Together they offer true cutting edge technology to tuners and performance enthusiasts worldwide.

• Supports 1 to 12 Cylinder engines
•1 to 3 Rotor engines
• Normally aspirated or forced induction
• Load sensing by Throttle Position (TPS), Manifold
• Absolute Pressure (MAP) or Mass Air Flow (MAF)
• Staged, Sequential, semi sequential, batch or multipoint injection patterns
• Distributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems
• Connect to a wide range of display dashes and expansion devices via CAN.
• Waterproof case (IP67) (with USB cover fitted)
• 34 position AMP connector
• 6 x Fuel Injection Outputs (peak and hold (0-8A peak / 0-2A hold)
• 6 x Ignition Outputs
• 2 x Dedicated Engine Position inputs with extensive trigger type support
• 2 x Digital Pulsed Inputs
• 5 x Digital Pulsed Outputs
• 2 x Analogue Voltage Inputs
• 3 x Dedicated Inputs (Throttle Position, Coolant Temperature & Air Temperature)
• Internal 3Bar MAP sensor rated up to 200kPa of boost (2Bar/29psi)
• Up to 45 channels of Input & Output (I/O) expansion (via CAN)
• USB Laptop Communication (Windows)
• On-board data logging
• NSP Calibration Software - Intuitive and easy to use

Harness Overview:
